Redundant HD, HDR or UHD-SNG Service

Sinds 2006 leveren wij redundante satellietwagens aan verschillende Nederlandse en buitenlandse TV zenders.

We doen nu voornamelijk line-feeds voor live sport uitzendingen in binnen en buitenland.
We beschikken over de laatste nieuwe technologie om via satelliet uw HD 1080i of 1080p, HDR en Ultra HD beelden te kunnen versturen over de hele wereld. In Mpeg-4 of HEVC.

Onze basis is in Zuid Nederland, dus we kunnen we ook makkelijk in België, Frankrijk en Duitsland werken.
Onze SNG’s hebben veel vermogen om in weer en wind te kunnen blijven uitzenden.



Neem contact op voor meer informatie

Informatie

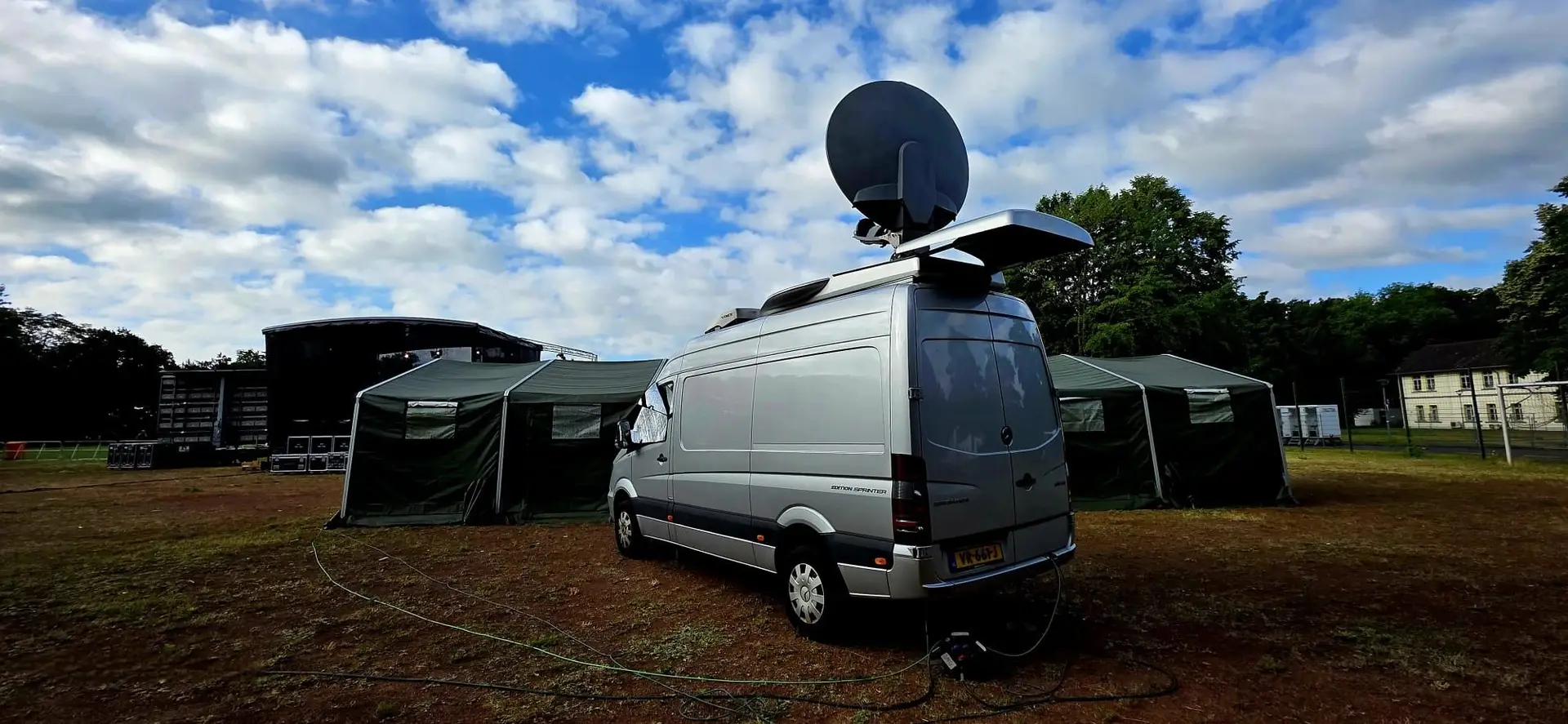

  • Mercedes Sprinter

  • HOL278 Eutelsat, Astra, Intelsat, Hispasat
  • Dish size: 1.6 meter
  • 1+1 HPA: 150 Watt (13.75-14.5 GHz)
  • 2x Tandberg E8040 encoder/modulator
  • 2x Ateme CM3101 Mpeg-4 encoders
  • 4:2:0 and 4:2:2
  • DVB-S2, 8PSK, 16APSK and 32APSK modulation
  • Biss encryption
  • 2x 3000 Watt UPS
  • 8 kW Fisher Panda generator
  • 2x IFB kit (can be wireless as option)
  • 4 jacks to level the truck
  • EBU Compliant

  • Mercedes Sprinter

  • HOL322 Eutelsat, Astra, Intelsat, Hispasat
  • High Powered Sports Uplink
  • Swedish: 1.5 meter (71 dBW EIRP)
  • 1+1 HPA: 400 Watt (13.75-14.5 GHz)
  • 2x Advent modulator
  • 2x Enensys modulator up to 5% roll off
  • 2x Ateme CM3101 Mpeg-4 encoders
  • NTT HC32000E redundant HEVC Encoder
  • 1080i, 1080p, HDR and UHD
  • DVB-S2, DVBS2X, 8PSK, 16APSK modulation
  • Redundant 4x HD mux capability
  • Biss-CA encryption
  • 3x 2000 Watt UPS
  • 7 kW Honda generator
  • 2x IFB kit (can be wireless as option)
  • 4 jacks to level the truck

  • Mercedes Sprinter

  • HOL324 Eutelsat, Astra, Intelsat, Hispasat
  • High Powered Sports Uplink
  • Andrew 2.4 meter (77 dBW EIRP)
  • 1+1 HPA: 400 Watt (13.75-14.5 GHz)
  • 2x Enensys modulator up to 5% roll off
  • NTT HC32000E redundant HEVC Encoder
  • 1080i, 1080p, HDR and UHD
  • DVB-S2, DVBS2X, 8PSK, 16APSK modulation
  • Redundant 4x HD mux capability
  • Biss-CA encryption
  • 2x 3000 Watt UPS
  • 7 kW Honda generator
  • 2x IFB kit (can be wireless as option)
  • 4 jacks to level the truck

Diensten

SNG

Both our trucks are 2+1 HD redundant.
Multi-path (SCPC) or an ASI mux (MCPC) for sports feeds,
8PSK and 16APSK modulation possible.

HOL322 also does DVBS2X and BISS-CA and it’s possible to do 1080P, HDR and Ultra HD.

We can also supply ASI outputs or extra encoders for a fiber back up.
With a 1+1 or 2+1 configuration you are always sure of a connection.
Most of our work is done in The Netherlands, Belgium and Germany, but our good travel rates make it possible to also serve France and Luxembourg etc.

Contact

Neem contact op door middel van onderstaand formulier
Postbus 335, 4700 AH Roosendaal
booking(@)newslive.eu
+31-653-427584
(24/7 bereikbaar)
